4.2-inch 1280x960 high-brightness LVDS interface LCD display module driven by GH7005-01 with resistive touch

1. Product Name: 4.2-inch 1280x960 High-Brightness LVDS Interface Industrial & Medical LCD Display Module with GH7005-01 Driver and Resistive Touch
2. Model:
3. Size: 4.2 inches
4. Compatible Models: --
5. Touch Panel Included: Yes
6. Touch Type: Resistive Touch
7. Display Mode: TFT
8. Display Colors: 16.7M
9. Resolution: 1280x960
10. Dot Pitch: 0.066(H)*0.066(V)
11. Viewing Angle: Full Viewing Angle
12. Driver IC: GH7005-01
13. Display Type: Transmissive, Normally Black
14. Outline Dimension: 90.86*72.64*5.10mm
15. Active View Area: 86.08*64.96mm
16. Dot Matrix Area: 84.48*63.36mm
17. Brightness: 1250cd/m²
18. Contrast Ratio: 1000:1
19. Interface Type: LVDS
20. Number of Pins: 40
21. Pin Pitch: 0.5mm
22. Connection Type: Connector Type
23. Operating Voltage: 3.3V
24. Backlight Color & Type: White LED Backlight
25. Backlight Circuit: 10 LEDs, 5 strings 2 parallel, VF=15V, IF=120mA
26. Service Life: 50000h
27. Operating Temperature: -20℃～+70℃
28. Storage Temperature: -30℃～+80℃
29. Product Certification: RoHS
30. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949

Product Tags:

4.2-inch high-brightness LCD display



LVDS interface TFT display module



resistive touch industrial display

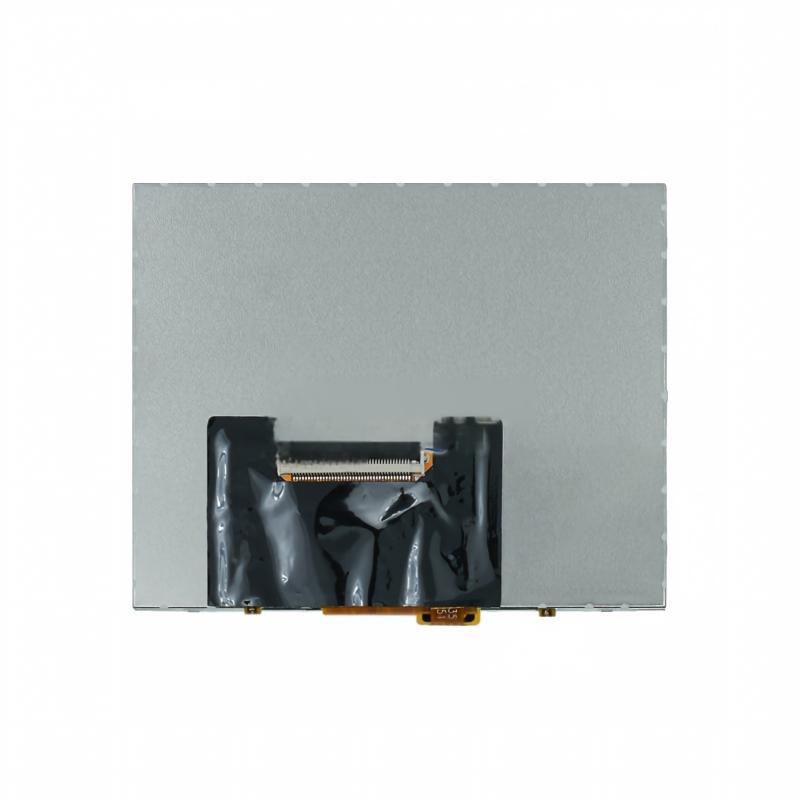

4.2-inch 1280x960 high-brightness LVDS interface LCD display module driven by GH7005-01 with resistive touch Images
