2.4-inch 320x426 Resolution Full Viewing Angle IPS LCD Display Module with ST7796S Driver IC

1. Product Name: 2.4‑inch 320x426 ST7796S IPS Full‑View‑Angle Full‑Interface Color LCD Display Module
2. Model:
3. Size: 2.4‑inch
4. Compatible Model: --
5. With Touch: No
6. Touch Type: None
7. Display Mode: IPS
8. Display Color: 65K/262K
9. Resolution: 320x426
10. Dot Pitch: 0.11475(H)*0.11475(V)
11. Viewing Angle: Full Viewing Angle
12. Driver IC: ST7796S
13. Display Type: Normally Black, Full Transmissive

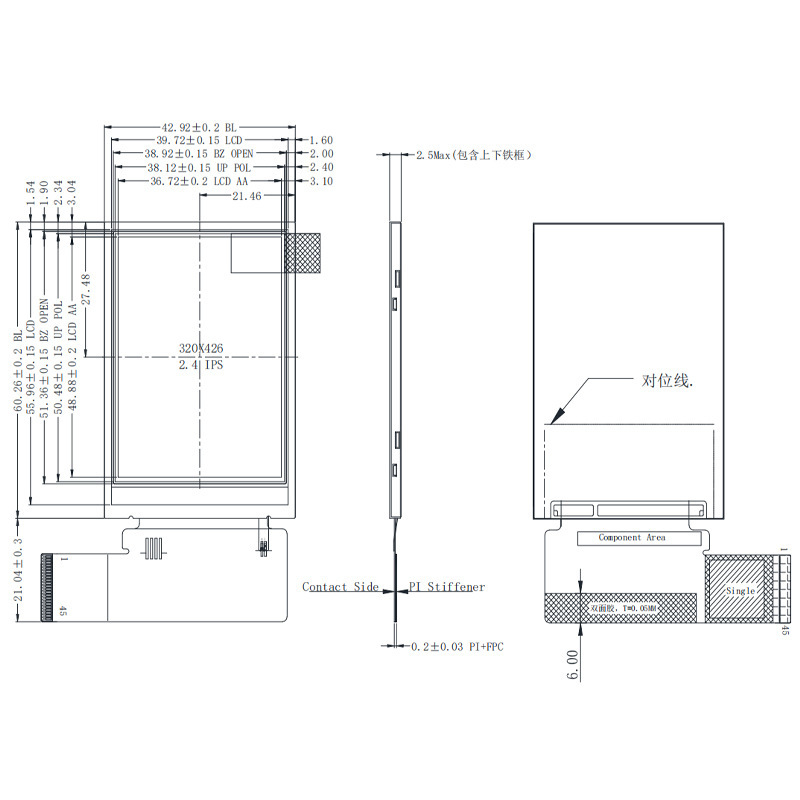

14. Outline Dimension: 42.92*60.26*2.50mm
15. Viewable Area: --
16. Dot‑Matrix Area: 36.72*48.88mm
17. Brightness: 450cd/m²
18. Contrast Ratio: 800∶1
19. Interface Type: 8/9/16/18‑bit MCU
3/4 SPI + 16/18‑bit RGB
3/4‑wire Serial Interface
20. Pin Count: 45
21. Pin Pitch: 0.3mm
22. Connection Type: Plug‑in Type
23. Operating Voltage: 3.3V
24. Backlight Color & Type: White LED Backlight
25. Backlight Circuit: 4 LEDs in series, VF=12.8V, IF=20mA
26. Service Life: 50000h
27. Operating Temperature: -20℃～+70℃
28. Storage Temperature: -30℃～+80℃
29. Product Certification: RoHS
30. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949

Product Tags:

2.4-inch LCD Display Module



320x426 Resolution TFT Display Module



Full Viewing Angle IPS Display Module

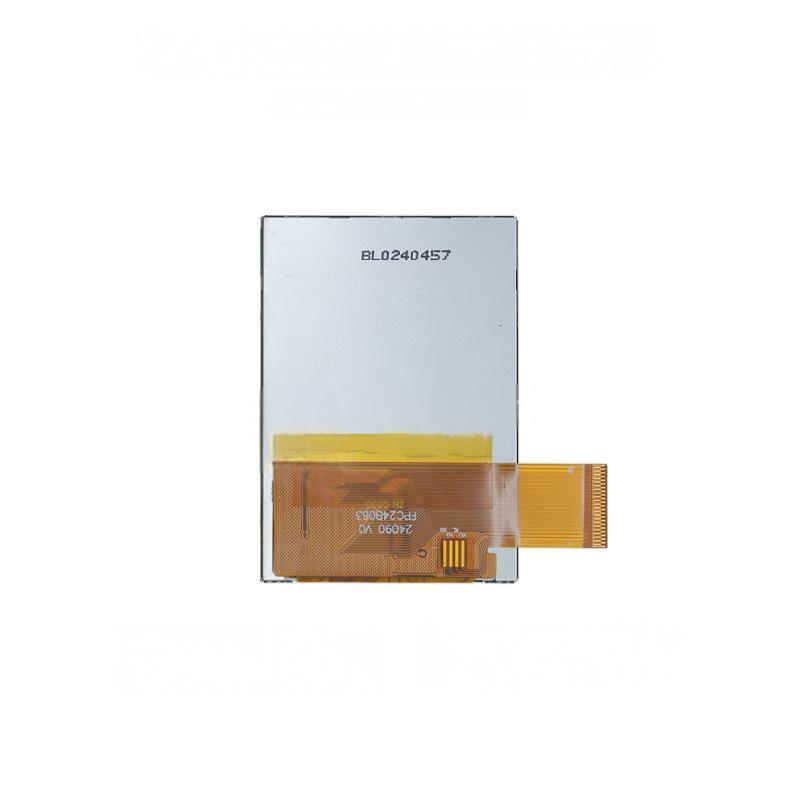

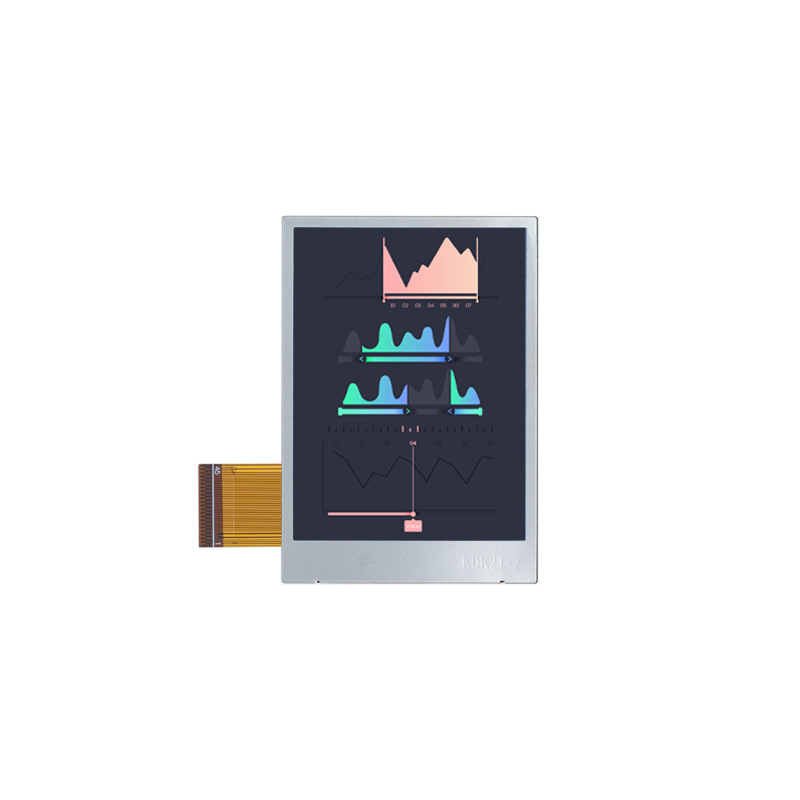

2.4-inch 320x426 Resolution Full Viewing Angle IPS LCD Display Module with ST7796S Driver IC Images
