2.7‑inch square screen, 320*320, MIPI interface TFT capacitive touch LCD screen for industrial control and vehicle‑mounted module

1. Module Name: 2.7‑inch Square TFT Capacitive Touch LCD Screen, 320*320, MIPI Interface
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: TFT
6. Display Colors: 65/262K
7. Resolution: 320*320
8. Pixel Pitch: 0.153(H)*0.153(V)
9. Viewing Angle: ALL
10. Driver IC: ST7796
11. Display Type: Transmissive, Normally‑Black
12. Outline Dimension: 63.4*69.9*3.77mm
13. Viewable Area:
14. Active Area: 48.96*48.96mm
15. Brightness: 800cd/m²
16. Contrast Ratio: 1200
17. Interface Type: MIPI
18. Pin Count: 20
19. Pin Pitch: 0.5mm
20. Connection Type: Plug‑in
21. Operating Voltage: 3.3V
22. Backlight Color & Type: White LED Backlight
23. Backlight Circuit: 6 LEDs, 20 mA (Constant Current), (16.8~20.4)V
24. Service Life: 50000h

2.7-inch square TFT LCD screen

MIPI interface capacitive touch display

industrial control TFT display module

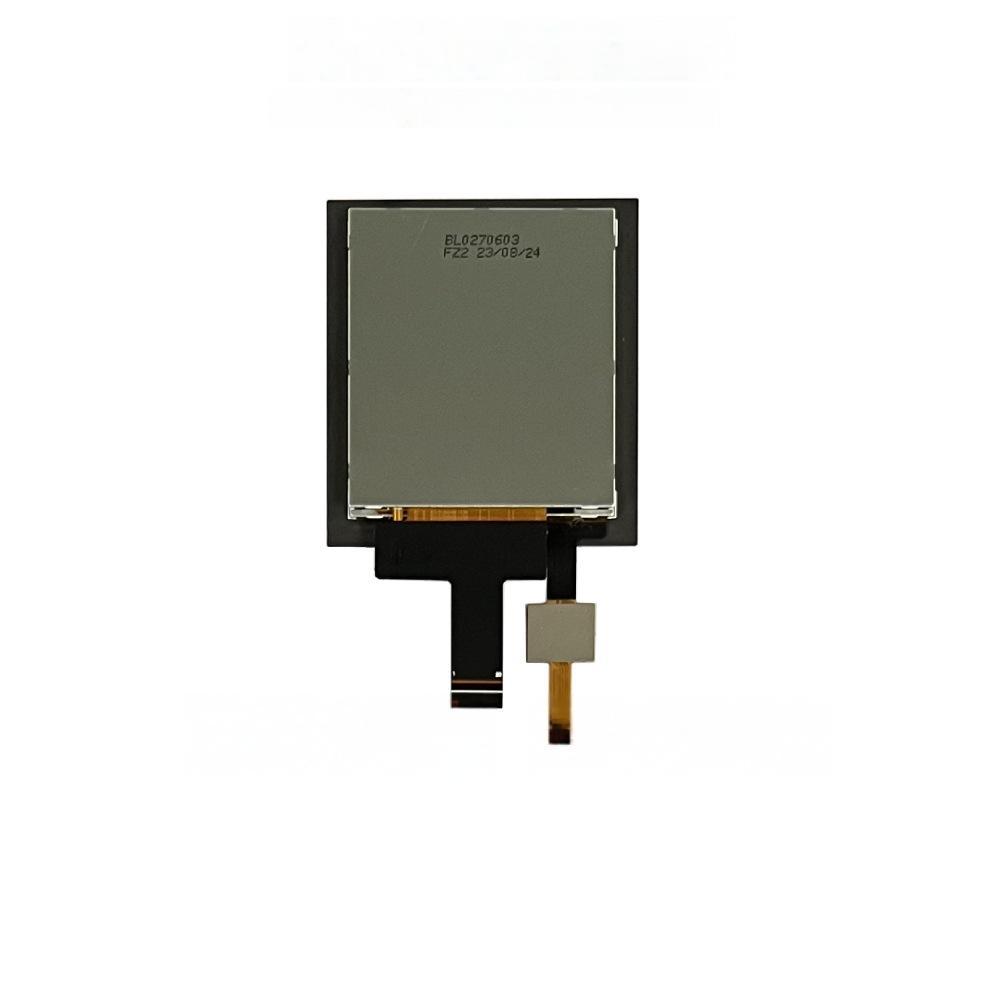

2.7‑inch square screen, 320*320, MIPI interface TFT capacitive touch LCD screen for industrial control and vehicle‑mounted module Images
